KNIPEX-77-02-130-SB-Electronics-Diagonal-Cutter,-130mm

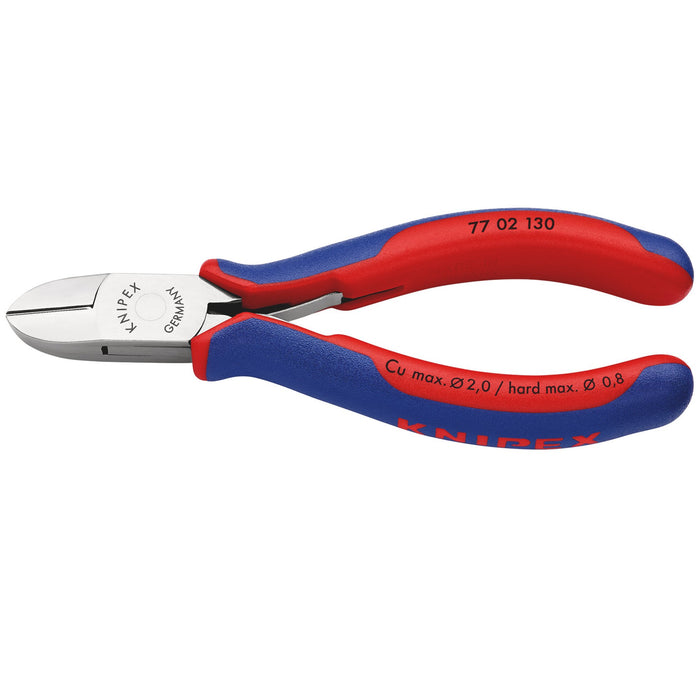

KNIPEX 77 02 130 SB Electronics Diagonal Cutter, 130mm

by KNIPEX

77 02 130 SB Electronics Diagonal Cutter Durable, load-optimised design with backlash-free box joint. High, slim sleeves for fine and comfortable gripping between thumb and index finger. Less physical effort due to very high transmission ratio. Load-optimised for a more direct feel when working. Low-friction double spring for gentle and even opening. The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools. Cutters additionally laser hardened, cutter hardness at least 62 HRC. round head, with small bevel. - Cutting capacities medium hard wire (diameter): Ø 1.5mm- Cutting capacities hard wire (diameter): Ø 0.8mm- Cutting capacities soft wire (diameter): Ø 0.3?–?2mm- Jaw length (B): 18mm- Jaw thickness (joint) (D): 9.5mm- Head width (A): 13mm- Cutting edge length mm (C): 16.2mm

• Durable, load-optimised design with backlash-free box joint
• High, slim sleeves for fine and comfortable gripping between thumb and index finger
• Less physical effort due to very high transmission ratio
• Round head, with small bevel
• Load-optimised for a more direct feel when working
• Low-friction double spring for gentle and even opening
• The mirror polish in combination with a fine oil film provides rust protection - no circuit faults caused by peeling chrome from plated tools
• Cutters additionally laser hardened, cutter hardness at least 62 HRC
• Active
Request a quote

1 x KNIPEX 77 02 130 SB Electronics Diagonal Cutter, 130mm

Lifetime

:

Manufactured to DIN ISO 9654 Specifications
