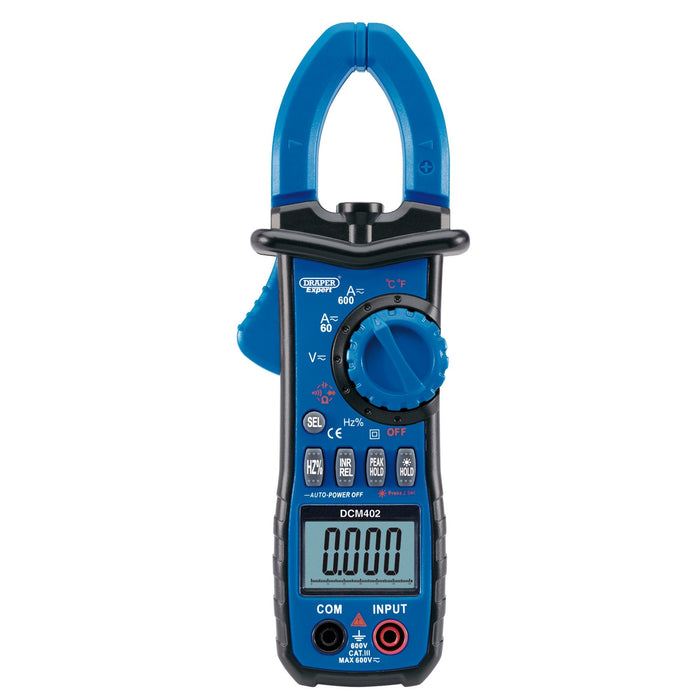

Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

by Draper Expert

Expert Quality, auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and temperature testing. Maximum jaw - opening diameter of 36mm, backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light. Supplied with test leads, temp probe and a case.

• Expert Quality
• Auto and manual ranging clamp meter capable of voltage, current, resistance, diode, continuity, capacitance, frequency, duty cycle and
• Temperature testing
• Maximum jaw-opening diameter of 36mm
• Backlit LCD screen, auto power off, linear bar graph functions and a useful inspection light
• Supplied with test leads, temp probe and a case
• Active
Request a quote

1 x Auto-Ranging Digital Clamp Meter with Linear Bar Graph Function

12 months

AC Amps: 60A/600A
AC Current: 60A/600A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Battery: 3 x AAA (not supplied)
Capacitance: 999nF/99.99nF/999.9nF/9.999µF/99.99µF/999.9µF/9.999mF/99.99mF
DC Amps: 60A/600A
DC Current: 60A/600A
DC Voltage: 600mV/6V/60V/600V
Diode on/off Test: Yes
Dimensions: 228mm x 158mm x 58mm
Duty Ratio: Yes
Dwell: N/A
Frequency: 100Hz/1000Hz/10kHz/100kHz/1MHz/10MHz
Resistance (Ohms): 6000Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature: -50 to 300ºC
Temperature Range: -50°C - 1000°C/-58°F - 1832°F
Weight: 400g (approx.)
