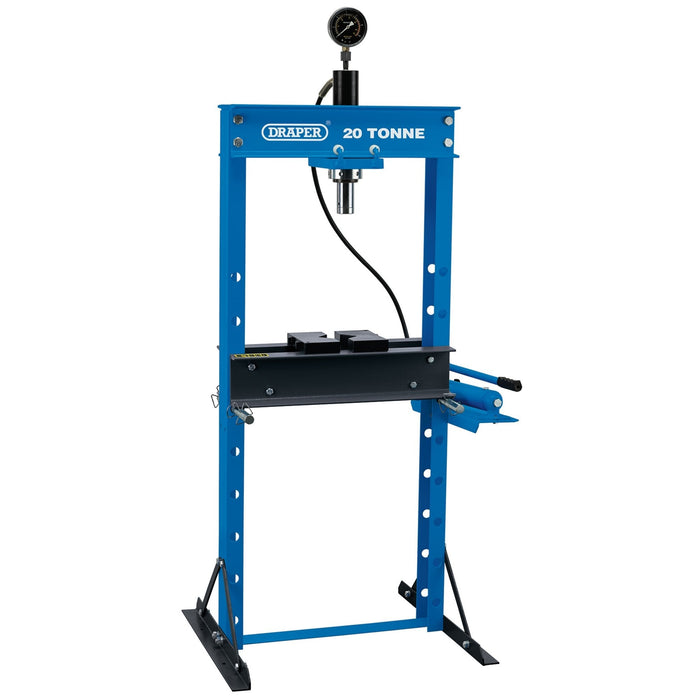

Floor Press, 20 Tonne

by Draper

Robust hydraulic 20 tonne floor press with sliding ram. There are nine adjustable table heights: 256, 366, 486, 606, 726, 846, 966, 1086 and 1106mm. The glycerine liquid filled gauge provides increased accuracy and prolonged service life. An anti-kink coil is fitted to each end of the flexible hose for increased protection .Fitted with a safety valve to protect the press from overloading. Complete with two flat V-shaped blocks. Fully tested and certified for safe, reliable operation.

• Sliding ram
• Ram height to table between 28-998mm
• Glycerine filled gauge for increased accuracy and long service life
• Anti-kink coil fitted to each end of the flexible hose for increased protection
• Active
Request a quote

1 x Floor Press, 20 Tonne

12 months

Capacity: 20 tonne
Gauge range: 0-28 tonne
Gauge diameter: 105mm
Ram stroke: 185mm
Ram diameter: 40mm
Ram height to table: 28-998mm
Working table width: 550mm
Overall height: 1785mm
Weight: 113.5kg
