Automotive-Digital-Multimeter

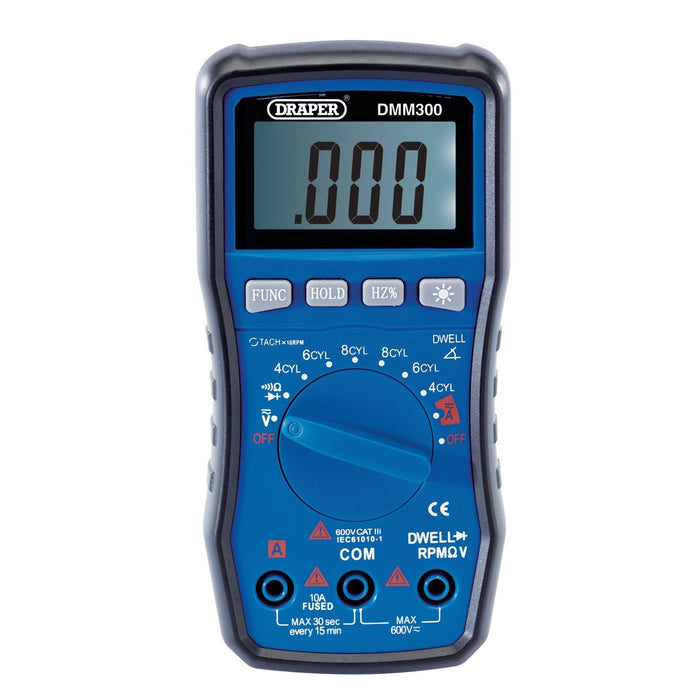

Automotive Digital Multimeter

by Draper

Auto and manual ranging capable of voltage, current, resistance, diode and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads and a case.

• Auto and manual ranging capable of voltage, current, resistance, diode and continuity testing
• Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features
• Supplied with test leads and a case
• Active
Request a quote

1 x Automotive Digital Multimeter

12 months

AC Amps: 2A/10A
AC Current: 2A/10A
AC Voltage: 200mV/2V/20V/200V/600V
Automatic Power Off: Yes
Capacitance: N/A
DC Amps: 2A/10A
DC Current: 2A/10A
DC Voltage: 200mV/2V/20V/200V/600V
Diode on/off Test: Yes
Dimensions: 150mm x 74mm x 43mm
Duty Ratio: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: N/A
Resistance (Ohms): 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ
Symbol Unit Data Hold: Yes
TACH: 4CYL/6CYL/8CYL
Temperature Range: N/A
Weight: 319g (approx.)
Battery Type: 2 x AAA (not supplied)
