Pocket-Analogue-Multimeter

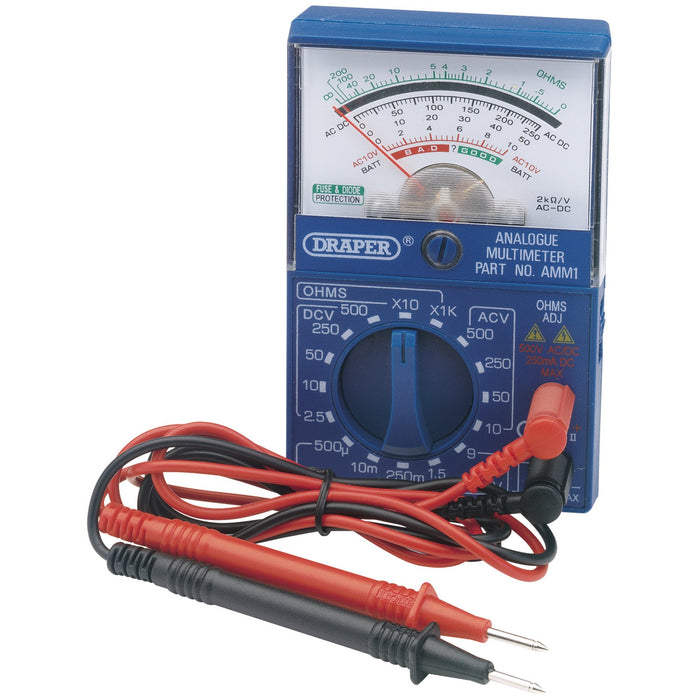

Pocket Analogue Multimeter

by Draper

Handy pocket analogue multimeter for use in electrical and automotive applications. Supplied with test probes, a crocodile clip probe set is available separately. Measures AC and DC Voltage, Measures DC current, Measures resistance, 16 position

• Measures AC/DC voltage, DC current and resistance
• 16 position rotary function and range selector
• Supplied with test probes
• Recessed input terminals
• Battery check facility
• Active
Request a quote

1 x Pocket Analogue Multimeter
2 x Test probes & leads

12 months

AC Current: N/A
AC Voltage: 10V/50V/250V/500V
Automatic Power Off: N/A
Battery: 1 x AA
Capacitance: N/A
DC Current: 550uA/10mA/250mA/10A
DC Voltage: 2.5V/10V/50V/250V/500V
Diode on/off Test: N/A
Dimensions: 64mm x 35mm x 102mm
Duty Ratio: N/A
Dwell: N/A
Frequency: N/A
Resistance (Ohms): 10Ω/1kΩ
Size: 64 x 100 x 35mm
Symbol Unit Data Hold: N/A
TACH: N/A
Temperature Range: N/A
Weight: 100g (approx.)

IEC61010 Specifications
