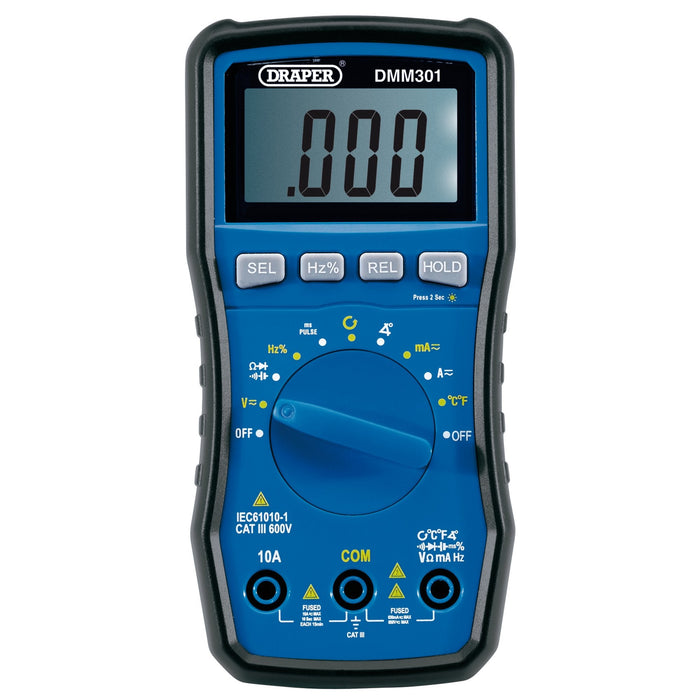

Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp

by Draper

Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing. Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features. Supplied with test leads, temp probe, inductive clamp, case and 2x test probes.

• Auto and manual ranging multimeter capable of voltage, current, resistance, diode, temperature and continuity testing
• Fitted with a backlit LCD screen, DWELL, Tach, MAX, auto power off, continuity buzzer and data hold features
• Supplied with test leads, temp probe, inductive clamp, and a case
• Active
Request a quote

1 x Automotive Digital Multimeter, 1 x Temperature Probe, 1 x Inductive Clamp

12 months

AC Amps: 6mA/600mA/6A/10A
AC Current: 60mA/600mA/6A/10A
AC Voltage: 6V/60V/600V
Automatic Power Off: Yes
Capacitance: 40nF/400nF/4µF/40µF/400µF/4000µF
DC Amps: 6mA/600mA/6A/10A
DC Current: 60mA/600mA/6A/10A
DC Voltage: 6V/60V/600V
Diode on/off Test: Yes
Dimensions: 184mm x 186mm x 72mm
Duty Ratio: Yes
Dwell: 4CYL, 6CYL, 8CYL
Frequency: 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/9.999MHz
Resistance (Ohms): 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
Symbol Unit Data Hold: Yes
TACH: RPM4 120-20000, RPM2 60-20000
Temperature: -20 to 1000ºC
Temperature Range: -20°C - 1000°C/-4°F - 1832°F
Weight: 507g (approx.)
Battery Type: 1 x PP3 9V (not supplied)
