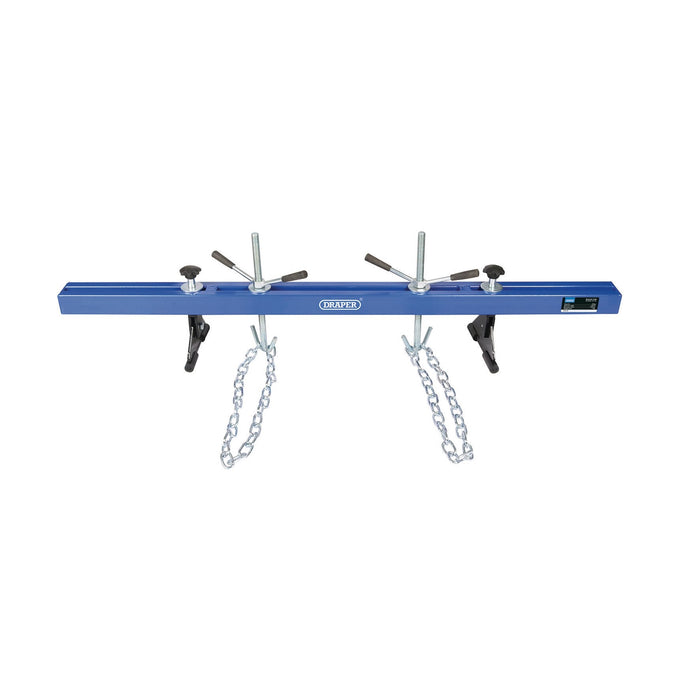

Engine and Gearbox Support, 500kg

by Draper

This engine support beam is designed to position the engine when replacing the engine mounts. It is also suitable for aiding the removal of transmission components and gearboxes. Compatible with most cars and light commercial vehicles. Adjustable outer extension clamps with rubber feet to prevent damage to the paintwork. Supplied with two chains.

• Adjustable outer extension clamps with rubber feet
• Designed to position the engine when replacing the engine mounts. Also suitable for aiding the removal of transmission components and gearboxes
• Compatible with most cars and light commercial vehicles
• Supplied with two chains
• Active
Request a quote

2 x Chains

12 months

Capacity: 500kg
Min. width: 730mm
Max. width: 1,480mm
Adjustable screw height: 0-205mm
Overall beam length: 1,500mm
Chain quantity: 2
Weight: 17kg
